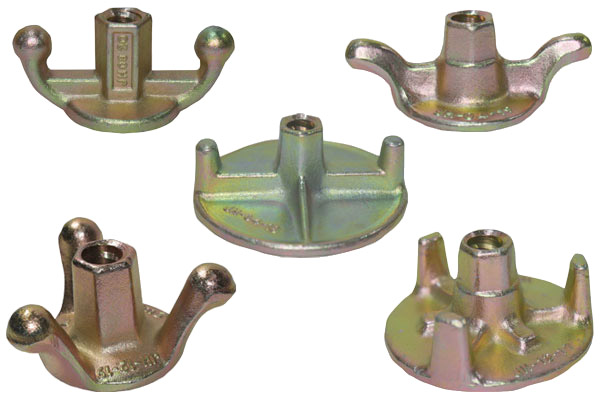

FORGED ANCHOR NUTS
| Code | Diameter (mm) | Base Diameter (mm) |
|---|---|---|
| 2 Wing Nut – Type 1 | ||
| JA-FN-1001 | 17 | 40 |
| JA-FN-1002 | 17 | 60 |
| 2 Wing Nut – Type 2 | ||
| JA-FN-1011 | 17 | 70 |
| 2 Wing Nut – Type 3 | ||
| JA-FN-1021 | 17 | 130 |
| 3 Wing Nut | ||
| JA-FN-2001 | 17 | 65 |
| JA-FN-2002 | 23 | 80 |
MONOBLOC SQUARE NUT
| Code | Diameter (mm) | Base Diameter (mm) |
|---|---|---|
| JA-FN-3001 | 23 | 80 |

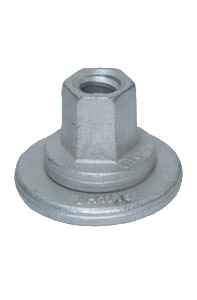

FLOATING WASHER NUT
| Code | Diameter (mm) | Base Diameter (mm) |
|---|---|---|
| JA-FN-3011 | 23 | 95 |
| JA-FN-3012 | 17 | 95 |
| JA-FN-3013 | 23 | 120 |
| JA-FN-3014 | 17 | 120 |

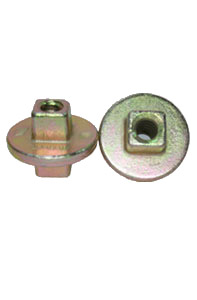

SQUARE WASHER NUT
| Code | Diameter (mm) | Base Diameter (mm) |
|---|---|---|
| JA-FN-3021 | 23 | 90 |

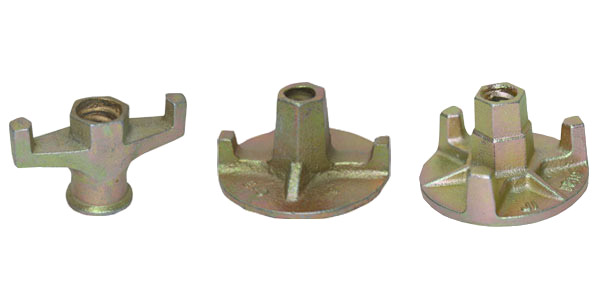

CASTED ANCHOR NUTS
| Code | Diameter (mm) | Base Diameter (mm) |
|---|---|---|
| Wing Nut – Type 1 | ||
| JA-FN-4001 | 17 | 40 |
| Wing Nut – Type 2 | ||
| JA-FN-4011 | 17 | 100 |
| Wing Nut – Type 3 | ||
| JA-FN-5001 | 17 | 70 |
| JA-FN-5002 | 17 | 95 |
| JA-FN-5003 | 17 | 110 |
| JA-FN-5004 | 17 | 130 |
ANCHOR FOOT CONE
| Code | Diameter (mm) | Base Diameter (mm) |
|---|---|---|
| JA-FN-6001 | 17 | 60 |
| JA-FN-6002 | 23 | 78 |
| JA-FN-6003 | 30 | 115 |
WATER BARRIER
| Code | Diameter (mm) | Base Diameter (mm) |
|---|---|---|
| JA-FN-7001 | 17 | 110 |
| JA-FN-7002 | 23 | 150 |

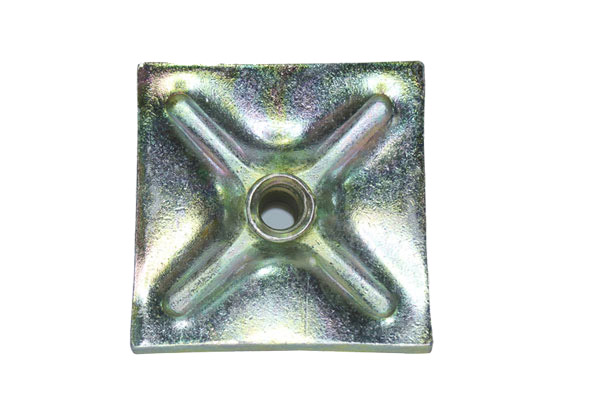

Waller Plate

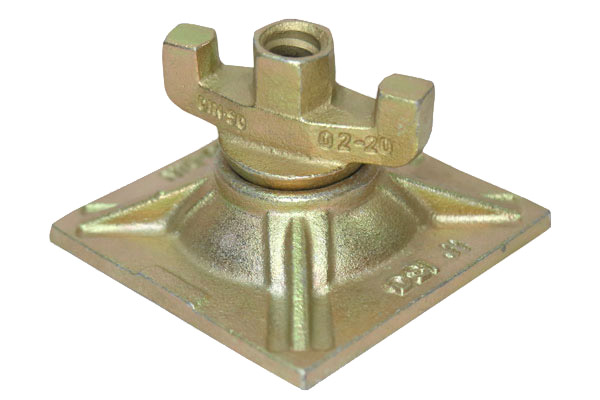

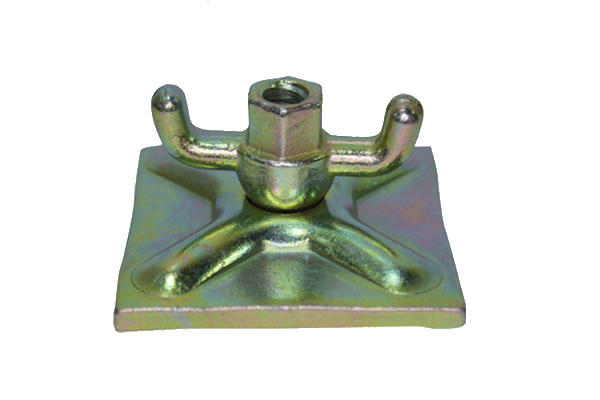

Waller Plate with Wing Nut
Slop Plate
