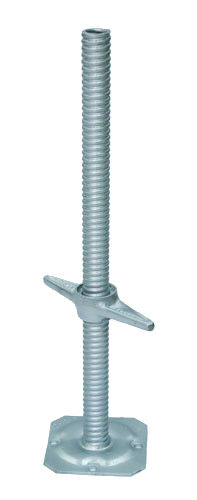

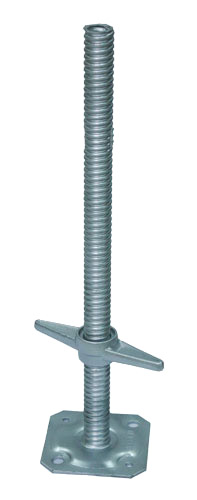

Adjustable Base Jacks

TUBE TYPE JACKS


Tube: ∅ 32 x 4 mm
Base Plate: 150 x 150 x 5 mm
Standard: DIN 4425
Finishes: HDG, BZP

CODE TUBE LENGTH (mm)
JI-AJ-1001 400
JI-AJ-1002 500
JI-AJ-1003 600
JI-AJ-1004 800
JI-AJ-1005 1000

Tube: ∅ 34 x 4 mm
Base Plate: 150 x 150 x 5 mm
Standard: DIN 4425
Finishes: HDG, BZP

CODE TUBE LENGTH (mm)
JI-AJ-1011 400
JI-AJ-1012 500
JI-AJ-1013 600
JI-AJ-1014 800
JI-AJ-1015 1000



Tube: ∅ 38 x 4 mm
Base Plate: 150 x 150 x 5 mm
Standard: DIN 4425
Finishes: HDG, BZP

CODE TUBE LENGTH (mm)
JI-AJ-1021 400
JI-AJ-1022 500
JI-AJ-1023 600
JI-AJ-1024 800
JI-AJ-1025 1000

Tube: ∅ 48 x 4 mm
Base Plate: 140 x 140 x 8 mm
Standard: DIN 4425
Finishes: HDG, BZP

CODE TUBE LENGTH (mm)
JI-AJ-1031 400
JI-AJ-1022 800
JI-AJ-1032 1000



SOLID TYPE JACKS


Solid Rod: ∅ 26 mm
Base Plate : 135 x 110 x 5 mm
Standard: DIN 4425
Finishes: HDG, BZP

CODE TUBE LENGTH (mm)
JI-AJ-2001 500
JI-AJ-2002 600
JI-AJ-2003 700
JI-AJ-2004 800
JI-AJ-2005 1000


Solid Rod: ∅ 32 mm
Base Plate : 150 x 150 x 5 mm
Standard: DIN 4425
Finishes: HDG, BZP

CODE TUBE LENGTH (mm)
JI-AJ-2011 500
JI-AJ-2012 600
JI-AJ-2013 700
JI-AJ-2014 800
JI-AJ-2015 1000


Solid Rod: ∅ 34 mm
Base Plate : 150 x 150 x 5 mm
Standard: DIN 4425
Finishes: HDG, BZP

CODE TUBE LENGTH (mm)
JI-AJ-2021 500
JI-AJ-2022 600
JI-AJ-2023 700
JI-AJ-2024 800
JI-AJ-2025 1000


Solid Rod: ∅ 38 mm
Base Plate : 150 x 150 x 5 mm
Standard: DIN 4425
Finishes: HDG, BZP

CODE TUBE LENGTH (mm)
JI-AJ-2031 500
JI-AJ-2032 600
JI-AJ-2033 700
JI-AJ-2034 800
JI-AJ-2035 1000

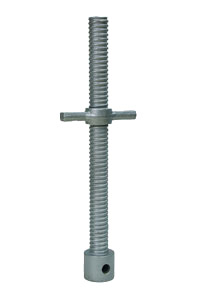

UNIVERSAL JACKS


Tube: ∅ 38 x 4 mm
Finishes: HDG, BZP

CODE TUBE LENGTH (mm)
JI-AJ-3001 300
JI-AJ-3002 400
JI-AJ-3003 500
JI-AJ-3004 600

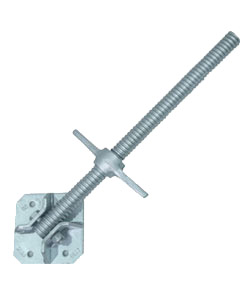

SWIVEL BASE JACKS


Tube: 02A3F 38 x 4 mm
Finishes: HDG, BZP

CODE TUBE LENGTH (mm)
JI-AJ-4001 300
JI-AJ-4002 400
JI-AJ-4003 500
JI-AJ-4004 600

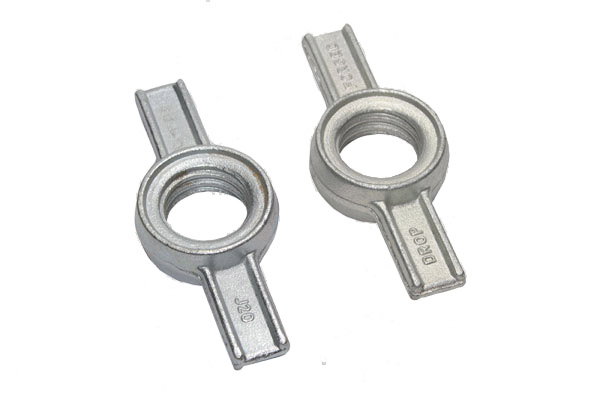

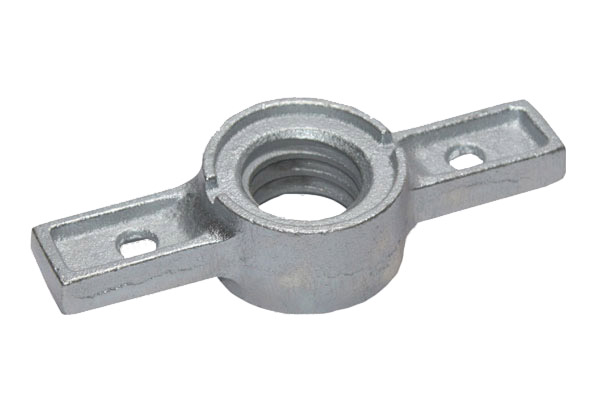

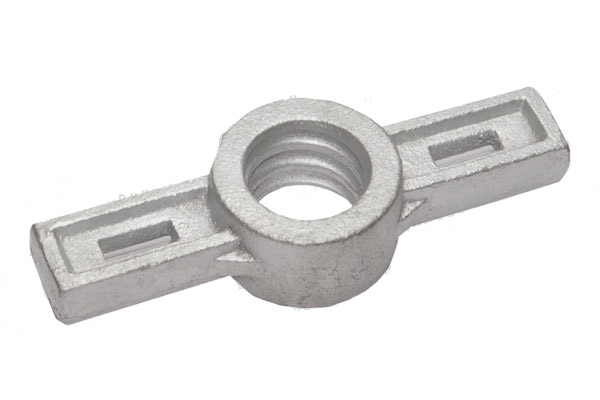

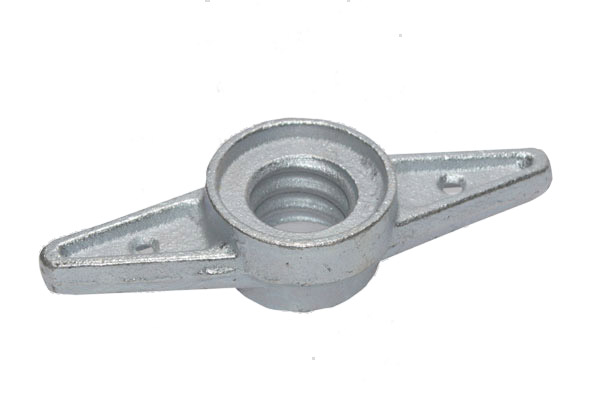

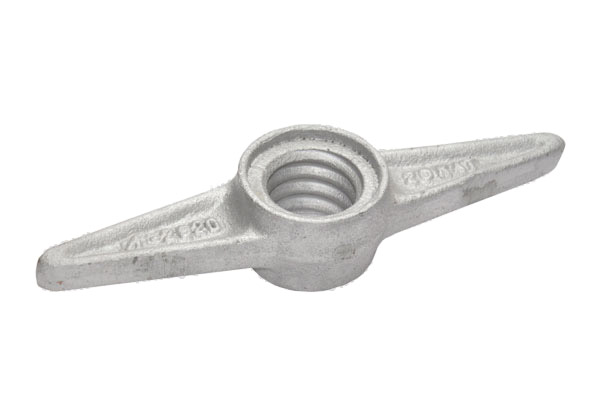

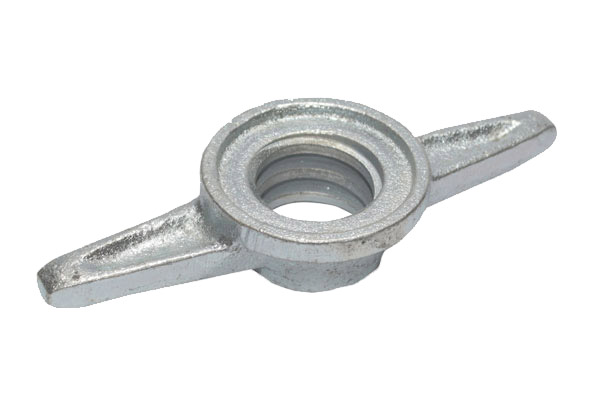

JACK NUTS
